Shuttle Plus Storage(SPS) 3, 3-SL, 3-G & 3-G-SL

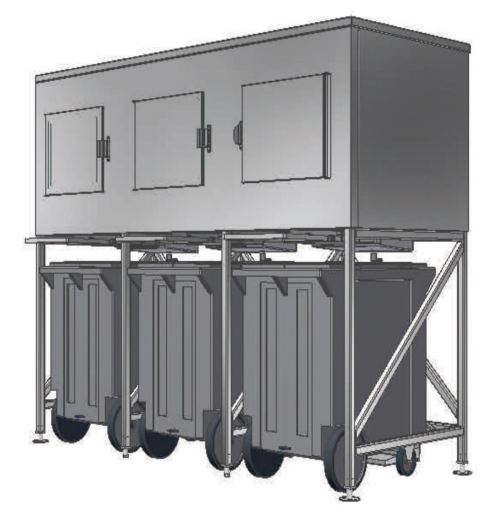

SPS-3

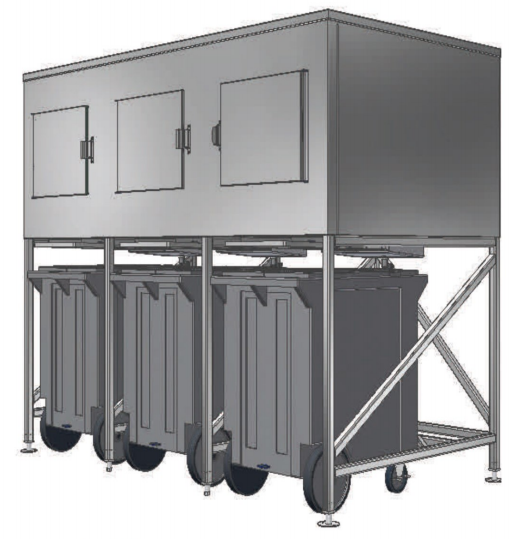

SPS-3-G

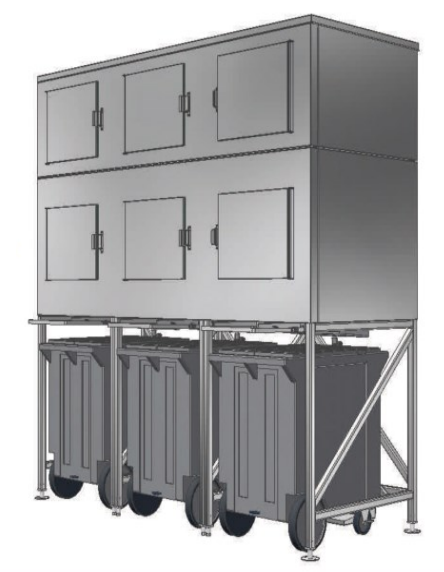

SPS-3-SL

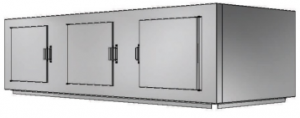

SPS-3 Sleeve

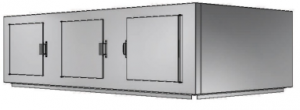

SPS-3-G Sleeve

Shuttle Plus Storage(SPS) Features

? SPS-3 Storage Capacity 907kg.
? SPS-3-SL Storage Capacity 1542kg.
? SPS-3-G Storage Capacity 1088kg.
? SPS-3-G-SL Storage Capacity 1950kg.
? A Sleeve for SPS-3 Storage Capacity 635kg.
? A Sleeve for SPS-3-G Storage Capacity 861kg.
? Each shuttle system is shipped with a 48″ ice paddle (60″ ice paddle is available)
? Standard PCC250 cart(s) are included
? Capacities and crated weights include the cart(s) and are variable

Dimensions

Model Width Depth Height
SPS-3 2286mm 914mm  1803mm
SPS-3-SL 2286mm  914mm 2565mm
SPS-3-G 2286mm  1219mm  1803mm
SPS-3-G-SL 2286mm  1219mm  2565mm
SPS-3 Sleeve Only 2286mm  914mm  762mm
SPS-3-G Sleeve Only 2286mm  1219mm  762mm



SL denotes extended Sleeve – Increases capacity by height ranging from 12″-30″
G denotes Giant – increases capacity by adding 12″ to the depth of the unit
