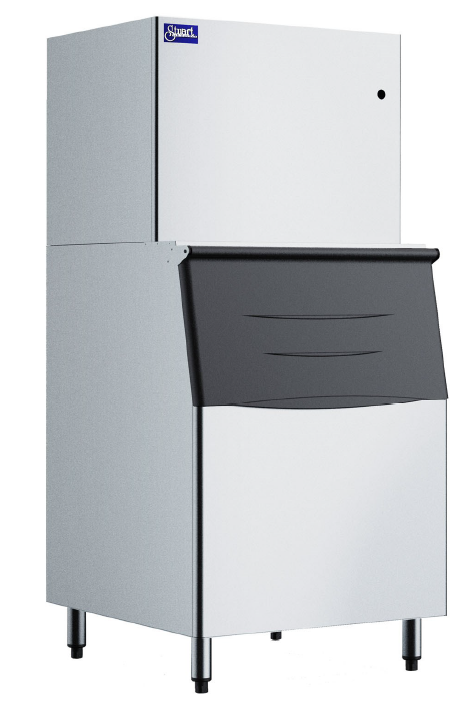

SX230B Ice Cuber

Feel free to share

SX230B Ice Cuber

About

The SX230B Ice cuber is capable of producing 230 KG of ice per day and has a storage capacity of 220 KG

This  ice cuber machine is available as a self-contained air-cooled, remote air cooled or water cooled.

Stuart Ice Makers designs and manufactures every ice cuber machine with great attention to detail, to deliver high quality products that meet your ice making needs!

Features

  • Fully microprocessor controlled
  • 2 years parts and labour warranty*
  • 304 grade Stainless Steel Cabinet
  • Food grade polyethylene bin liner with non CFC foamed-in-place insulation
  • Can be supplied with or without storage bin
  • Available as self contained air cooled, remote air cooled or water cooled

*Refer to warranty schedule for full details

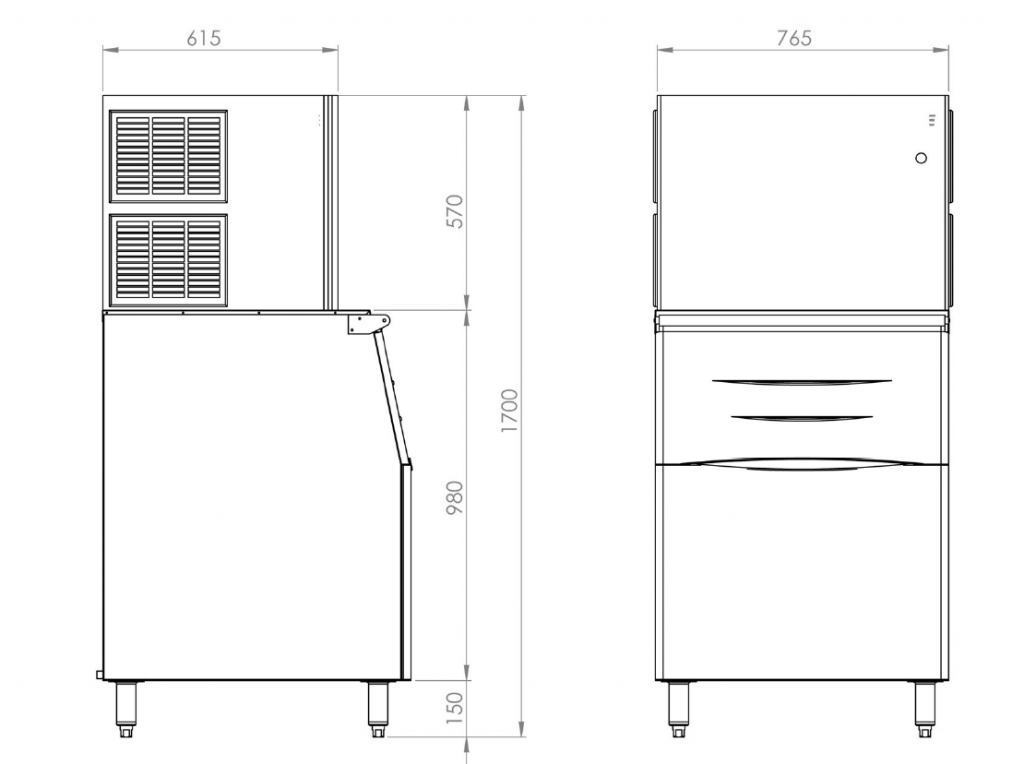

Dimensions

SCU Ice Maker Range, Brochure

Power

Voltage – 240 50Hz

Amps

8.6 A

Ice Making Capacity

Ambient Temp
(°Celcius)
Water
Temp
( °Celcius)
Kilgrams
Per
24 Hours

21 15 230

21 21 220

32 21 194

38 21 180

Drainage

Floor waste within 2 metres of machine

Shipping Detail (cm)

83 x 88 x 180 cm

145 kg

Water Supply

3/4″ BSP male stop cock within 1.5 metres of machine.
