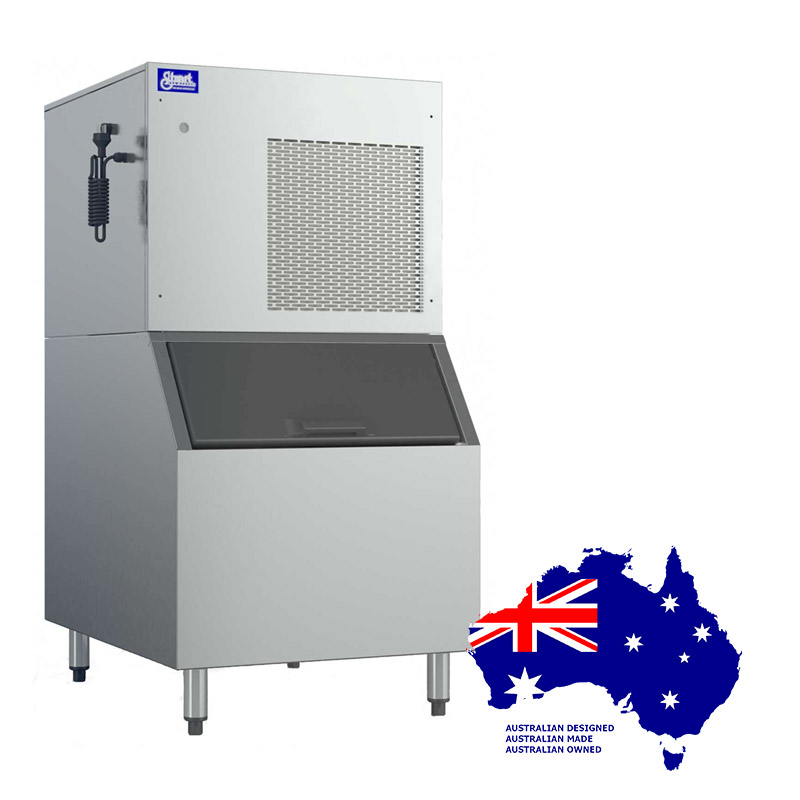

SC220B Ice Maker Machine

About

The SC220B Ice cuber is capable of producing 237 KG of ice per day and has a storage capacity of 150 KG

This  ice cuber machine is a top quality self-contained unit, built with locally sourced parts which will make acquiring replacement parts cheaper and faster.

Stuart Ice Makers designs and manufactures every ice cuber machine with great attention to detail, to deliver high quality products that meet your ice making needs!

Features

? Capacity up to 273kg per day
? Fully microprocessor controlled
? Lifetime warranty* on microprocessor
? 2 years warranty on all other parts and labour
? All locally sourced components- replacement parts are cheaper and more readily available
? 304 grade Stainless Steel Cabinet
? Nickel plated, double-sided evaporator
? Can be supplied with or without storage bin
? Easy maintenance. Convenient access to all components
? Minimal water wastage
? Available as self-contained air cooled, remote air cooled or water cooled

Dimensions

W 730 x D 930 x H 1400

(Includes 150mm Legs)

*Refer Warranty Schedule For Full Details

SCU Ice Maker Range, Brochure

sc220b-specs

Power

Voltage-240-50Hz

Amps

8.5
(10 Amp GPO)

Ice Making Capacity

Ambient Temp
(°Celcius)
Water
Temp
( °Celcius)
Kilgrams
Per
24 Hours

21 15 220

21 21 212

32 21 203

38 21 181

Drainage

Floor waste within 2 metres of machine

Shipping Detail (cm)

Head only 70Kg
Bin only 60Kg

Water Supply

3/4″ BSP male stop cock within 1.5 metres
of left hand side of machine.Logo

Australian Owned

Australian Made

Australian Design
