W 730 x D 930Â x H 710
(Excludes 150 mm Legs)

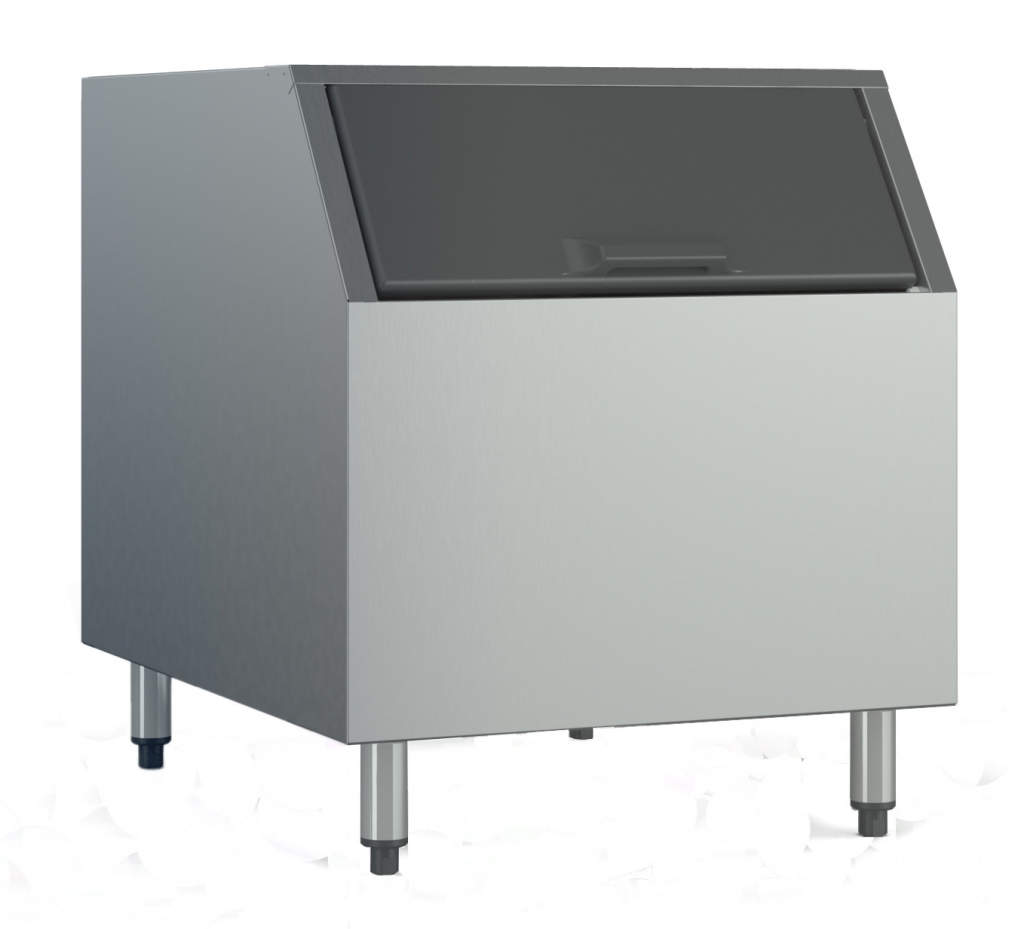

Ice Storage Bin B450
B450 Features
★ 304 grade stainless steel.
★ Door lifts up and slides away under ice maker to provide easy access.
★ Can be supplied with adaptor panels to fit a range of cube and flaker ice makers.
Dimensions
Ice Bin Drainage
Drain spigot located center back of bin.
All bins supplied with 2.5m flexible drain hose.
Drainage point should be located at least 150 mm below storage bin base.
Ice Bin Legs
All bins supplied with 150mm stainless steel legs.
Optional 300mm legs available on request.
