SC2000B Ice Maker

Feel free to share

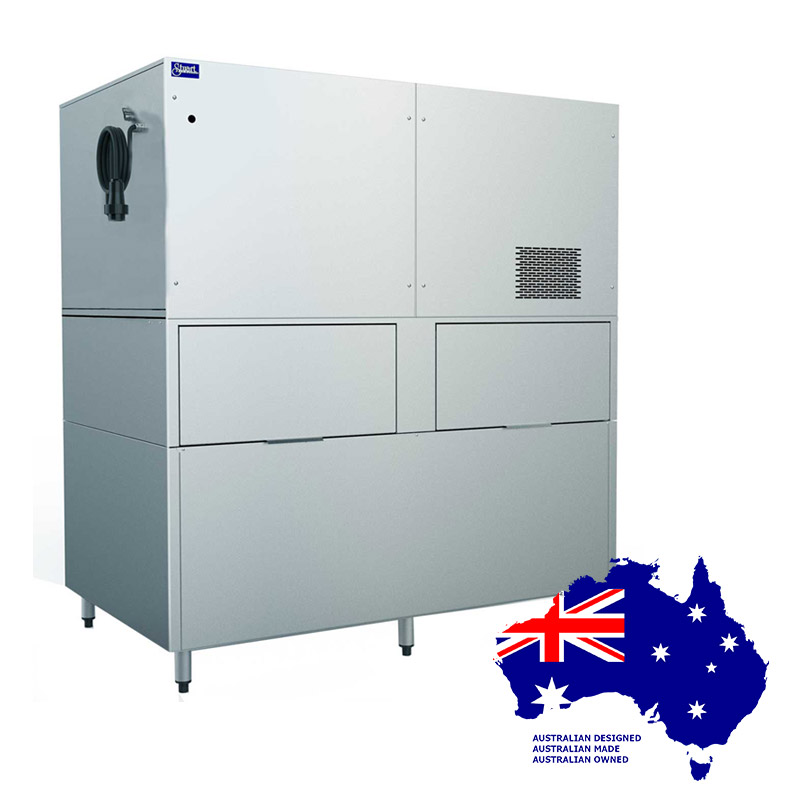

SC2000B Self Contained

About

The SC2000B Ice cuber is capable of producing 2300 KG of ice per day and has a storage capacity of 690 KG

This  ice cuber machine is a top quality self-contained unit, built with locally sourced parts which will make acquiring replacement parts cheaper and faster.

Stuart Ice Makers designs and manufactures every ice cuber machine with great attention to detail, to deliver high quality products that meet your ice making needs!

Features

? Capacity up to 2300kg per day
? Ice Storage Capacity: up to 690kg
? Fully microprocessor controlled
? Lifetime warranty* on microprocessor
? 2 years warranty on all other parts and labour
? All locally sourced components- replacement parts are cheaper and more readily available
? 304 grade Stainless Steel Cabinet
? Food grade polyethylene bin liner with non CFC foamed-in-place insulation
? Nickel plated, double-sided evaporator
? Can be supplied with or without storage bin
? Easy maintenance. Convenient access to all components
? Minimal water wastage
? Available as self contained air cooled, remote air cooled or water cooled

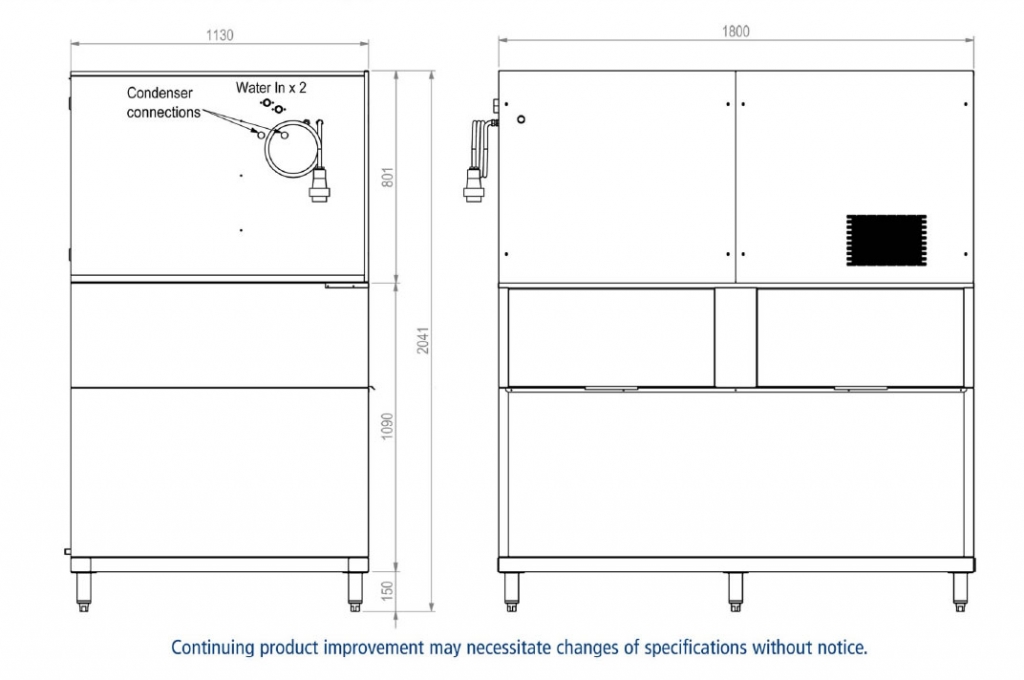

Dimensions

SCU Ice Maker Range, Brochure

Power

Voltage-415-50Hz

Amps

18 Amps per phase with neutral.

Ice Making Capacity

Ambient Temp
(°Celcius)
Water
Temp
( °Celcius)
Kilgrams
Per
24 Hours

21 15 2300

21 21 2100

32 21 1900

38 21 1632

Drainage

Floor waste within 2 metres of machine

Shipping Detail (cm)

Head only 270kg
Remote Condenser 130kg
Bin only 250kg

water Supply

3/4″ BSP male stop cock within 1.5 metres
of left hand side of machine. Logo
