Single Door Uprights

Feel free to share

Single Door Uprights

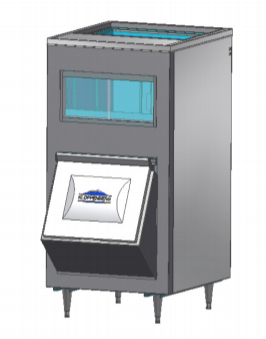

705

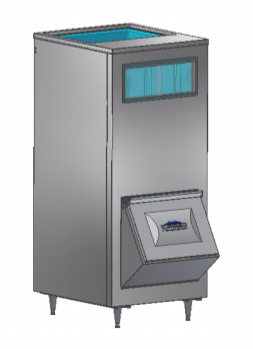

905

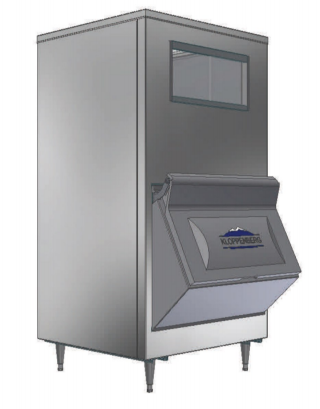

965

1045

1315

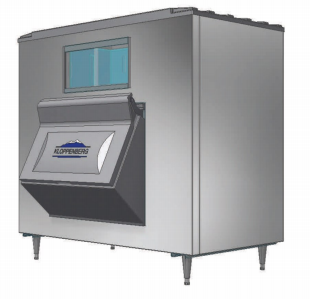

1325

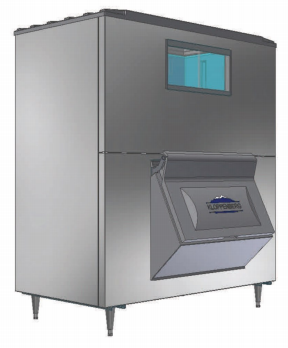

1665

1915

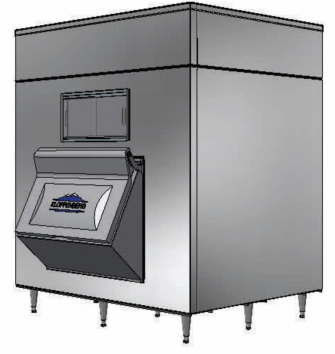

2415

Single Door Upright Features

? 1 1/2″ foamed in-place polyurethane insulation
? Convenient snout door spring latch
? Stainless steel baffle behind door prevents ice overflow
? Clear polycarbonate sliding view windows
? Factory installed 1″ IPS plastic drain

Dimensions

Model Width Depth Height Capacity
705-SS 762mm 914mm  1473mm 336kg
705-SBB 762mm  914mm 1473mm 336kg
905-SS 762mm  1219mm  1956mm 464kg
905-SBB 762mm  1219mm  1956mm 464kg
965-SBB 914mm  914mm  1702mm 485kg
1045-SS 1219mm  864mm  1397mm 526kg
1045-SBB 1219mm  864mm  1397mm 526kg
1315-SS 1219mm  864mm  1702mm 661kg
1315-SBB 1219mm  864mm  1702mm 661kg
1325-SS 1524mm  864mm  1397mm 667kg
1325-SBB 1524mm  864mm  1397mm 667kg
1665-SS 1524mm  1219mm  1702mm 837kg
1665-SBB 1524mm  1219mm  1702mm 837kg
1915-SBB 1524mm  1219mm  1422mm 989kg
2415-SBB 1524mm  1219mm  1727mm 1236kg



SBB—Stainless steel front, sides, back and bottom
SS—Stainless steel front and sides
Seamless poly liner

Sleeves Available for 1915 and 2415 models. A sleeve is W x D x 12″H and can be customized to add height, special doors and more.
