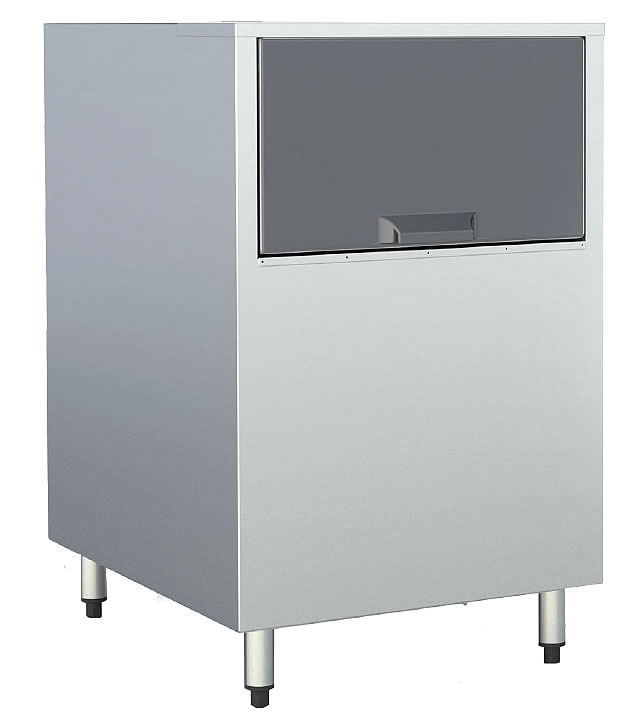

Ice Storage Bin B300

B300 Ice Storage Bin, Ice Maker

B300 Features

★ Storage Capacity 100kg.
★ 304 grade stainless steel.
★ Door lifts up and slides away under ice maker to provide easy access.
★ Food Grade Polyethylene Liner and non CFC foamed in place insulation.
★ Can be supplied with adaptor panels to fit a range of cube and flake ice makers.

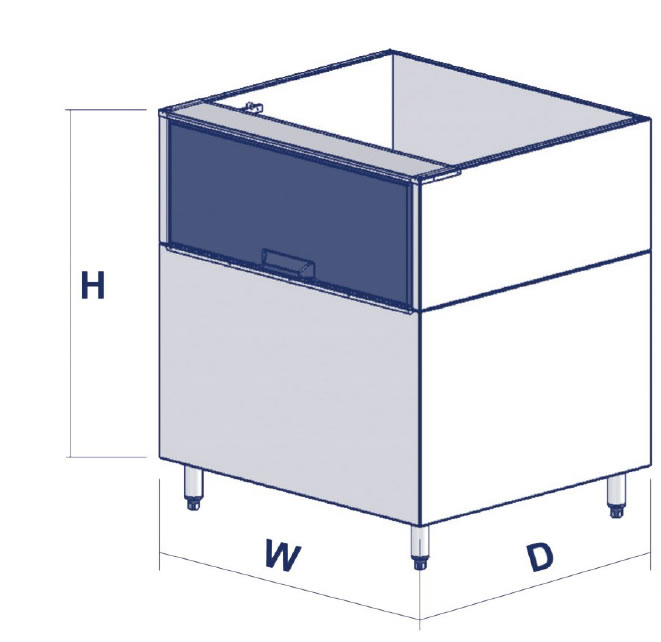

Dimensions

W 730 x D 600 x H 810
(Excludes 150 mm Legs)

SCU Ice Maker Range, Brochure
B300 Ice Storage Bin Specs

Ice Bin Drainage

Drain spigot located center back of bin.

All bins supplied with 2.5m flexible drain hose.

Drainage point should be located at least 150 mm below storage bin base.

Ice Bin Legs

All bins supplied with 150mm stainless steel legs.

Optional 300mm legs available on request.
